Overview

In this tutorial I will create a custom UI with swift for iOS. I decided to create a custom view on ios, after I saw Prakhar Neel Sharma’s design at dribbble.

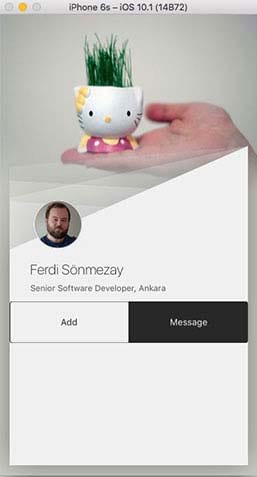

When you finish this tutorial, your application will look like as shown in the image. You can also download the source from my github repository

Development

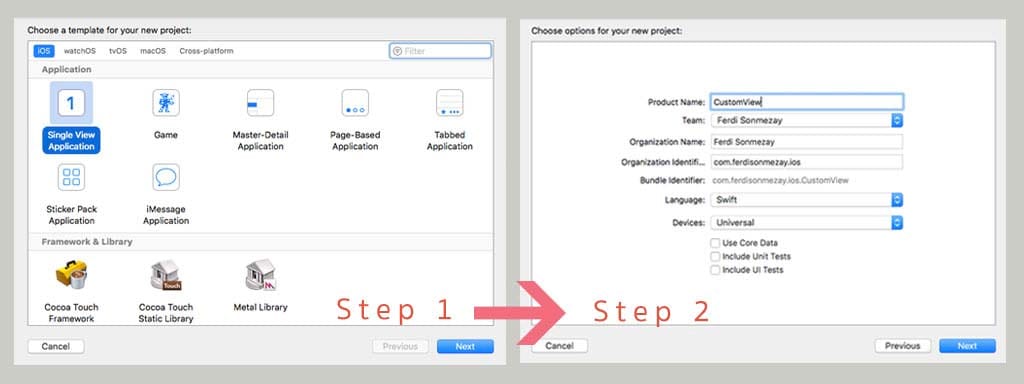

Let’s start with a Single View Application as follows.

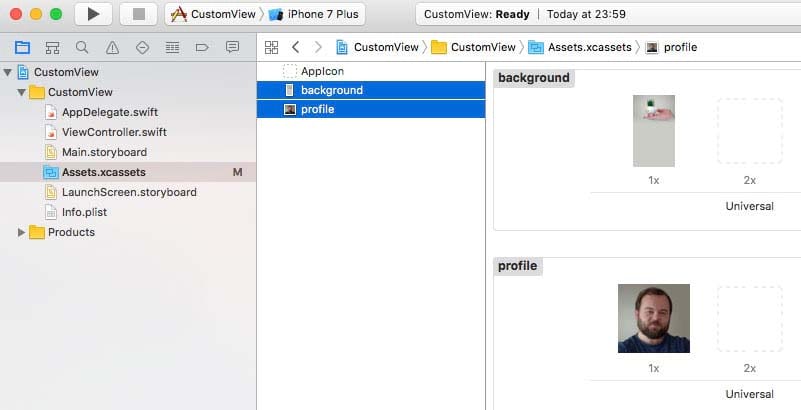

After your project is created we need to add our background and profile images into the Assets.xcassets folder. You can select the folder and just drag & drop the files you want to use as profile image and background image. I have named those image files as profile and background

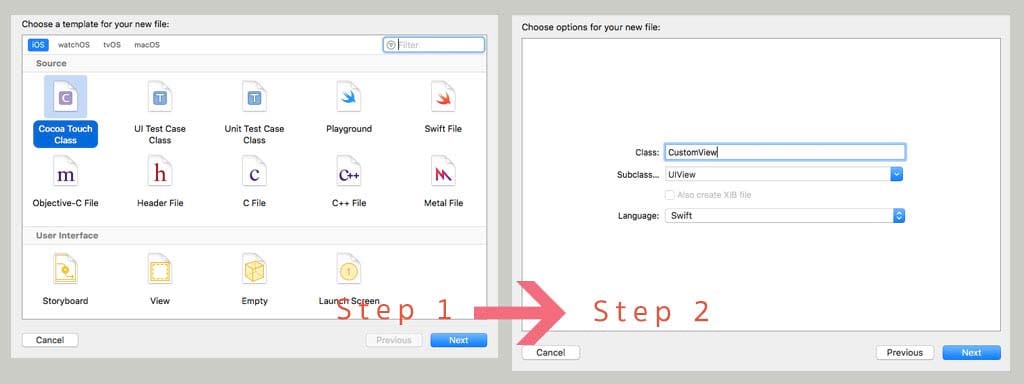

Now we need to create a new Cocoa Touch Class for our custom view as follows. You can create a new file with Cmd+N shortcut.

In the second popup, make sure that UIView is selected at Subclass section. I’ll call this file CustomView.swift

Now, it’s time to write some code. First thing I want to do is to create a function called createCustomPath() for drawing a UIBezierPath. Open CustomView.swift file and add these lines.

//CustomView.swift

import UIKit
class CustomView: UIView {

  // Only override draw() if you perform custom drawing.
  // An empty implementation adversely affects performance during animation.
  //override func draw(_ rect: CGRect) {
      // Drawing code
  //}

  func createCustomPath(padding: CGFloat, startY: CGFloat, endY: CGFloat) -> UIBezierPath {
      let path = UIBezierPath()
      path.move(to: CGPoint(x: bounds.minX + padding, y: bounds.minY + startY))
      path.addLine(to: CGPoint(x: bounds.minX + padding, y: bounds.maxY - padding))
      path.addLine(to: CGPoint(x: bounds.maxX - padding, y: bounds.maxY - padding))
      path.addLine(to: CGPoint(x: bounds.maxX - padding, y: bounds.minY + endY))
      path.close()
      return path
  }
}

This function will create our custom shape.

To draw the shapes, we need to uncomment override func draw(_ rect: CGRect) and call createCustomPath() function.

We need to set colors before we create and fill() our shapes, so our draw() function will be as follows. There are 5 different shapes in out custom UI so, I will call createCustomPath() function five times. First shape has the opacity value of 0.1 . Next three shapes have the opacity value of 0.2 . And the last one’s opacity is set to 1.

  override func draw(_ rect: CGRect) {
    //set fill color with 0.1 opacity
    UIColor(red:255/255, green: 255/255, blue: 255/255, alpha: 0.1).set()
    createCustomPath(padding: 15, startY: 220, endY: 190).fill()

    //change fill color opacity to 0.2
    UIColor(red:255/255, green: 255/255, blue: 255/255, alpha: 0.2).set()
    createCustomPath(padding: 15, startY: 240, endY: 260).fill()
    createCustomPath(padding: 15, startY: 265, endY: 190).fill()
    createCustomPath(padding: 15, startY: 270, endY: 290).fill()

    UIColor(red:240/255, green: 240/255, blue: 240/255, alpha: 1).set()
    createCustomPath(padding: 15, startY: 340, endY: 190).fill()
}

Now it’s time to change ViewController.swift file. In the ViewController we will create

  • An instance of CustomView
  • A UIImageView for our profile image
  • A UISegmentedControl view for Add and Message buttons
  • Two UITextView s for Name and Job Title fields

Then we will add those items to our MainView with addSubiew() function.

We will also create setup functions for each field explained above, to place them in the view, and setup the height, width anchors.

  // ViewController.swift
  let customView : CustomView = {
      let view = CustomView()
      view.translatesAutoresizingMaskIntoConstraints = false;
      view.layer.shadowColor = UIColor.black.cgColor
      view.layer.shadowOffset = CGSize(width: 0, height: 0)
      view.layer.shadowOpacity = 0.4
      view.layer.shadowRadius = 25
      return view
  }()

  let profileImage: UIImageView = {
      let profileImageView = UIImageView()
      profileImageView.image = UIImage(named: "profile")
      profileImageView.translatesAutoresizingMaskIntoConstraints = false
      profileImageView.layer.cornerRadius = 35
      profileImageView.layer.borderColor = UIColor.white.cgColor
      profileImageView.layer.borderWidth = 1
      profileImageView.layer.masksToBounds = true
      return profileImageView
  }()

  let segmentedController: UISegmentedControl = {
      let sc = UISegmentedControl(items:["Add", "Message"])
      sc.translatesAutoresizingMaskIntoConstraints = false
      sc.selectedSegmentIndex = 0
      sc.tintColor = UIColor(red:40/255, green: 40/255, blue: 40/255, alpha: 1)
      sc.layer.cornerRadius = 0.0
      sc.layer.borderColor = UIColor(red:240/255, green: 240/255, blue: 240/255, alpha: 1).cgColor
      sc.layer.borderWidth = 0.1;
      sc.layer.masksToBounds = true
      return sc
  }()

  let nameTextView: UITextView = {
      let nameTextView = UITextView()
      nameTextView.text = "Ferdi Sönmezay"
      nameTextView.isEditable = false
      nameTextView.font = UIFont.systemFont(ofSize: 20, weight: UIFontWeightThin)
      nameTextView.backgroundColor = UIColor(red: 1.0, green: 1.0, blue: 1.0, alpha: 0.0)
      nameTextView.textColor = UIColor.black
      nameTextView.translatesAutoresizingMaskIntoConstraints = false
      return nameTextView
  }()

  let summaryTextView: UITextView = {
      let summaryTextView = UITextView()
      summaryTextView.text = "Senior Software Developer, Ankara"
      summaryTextView.isEditable = false
      summaryTextView.font = UIFont.systemFont(ofSize: 12, weight: UIFontWeightRegular)
      summaryTextView.backgroundColor = UIColor(red: 1.0, green: 1.0, blue: 1.0, alpha: 0.0)
      summaryTextView.textColor = UIColor.darkGray
      summaryTextView.translatesAutoresizingMaskIntoConstraints = false
      return summaryTextView
  }()

After we defined our fields, now we need to add those items in our view using view.addSubview() function. Change viewDidLoad() function as follows.

override func viewDidLoad() {
    super.viewDidLoad()

    //background-image
    UIGraphicsBeginImageContext(self.view.frame.size)
    UIImage(named: "background")?.draw(in: self.view.bounds)
    let image: UIImage = UIGraphicsGetImageFromCurrentImageContext()!
    UIGraphicsEndImageContext()
    self.view.backgroundColor = UIColor(patternImage: image)

    view.addSubview(customView)
    view.addSubview(profileImage)
    view.addSubview(nameTextView)
    view.addSubview(summaryTextView)
    view.addSubview(segmentedController)
}

The next step is to specify anchors for each field defined above. I will create a function for each field.

func setupCustomView() {
    customView.topAnchor.constraint(equalTo: view.topAnchor).isActive = true;
    customView.leftAnchor.constraint(equalTo: view.leftAnchor).isActive = true
    customView.heightAnchor.constraint(equalTo: view.heightAnchor).isActive = true
    customView.widthAnchor.constraint(equalTo: view.widthAnchor).isActive = true
    customView.backgroundColor = UIColor(red: 100/255, green: 53/255, blue: 121/255, alpha: 0.0)
}

func setupProfileImage() {
    profileImage.leftAnchor.constraint(equalTo: view.leftAnchor, constant:50).isActive = true
    profileImage.centerYAnchor.constraint(equalTo: view.centerYAnchor, constant:-30).isActive = true
    profileImage.widthAnchor.constraint(equalToConstant: 70).isActive = true
    profileImage.heightAnchor.constraint(equalToConstant: 70).isActive = true

}

func setupNameTextView() {
    nameTextView.topAnchor.constraint(equalTo: profileImage.bottomAnchor, constant:10).isActive = true
    nameTextView.leftAnchor.constraint(equalTo: profileImage.leftAnchor, constant:-10).isActive = true
    nameTextView.widthAnchor.constraint(equalTo: customView.widthAnchor, constant: -40).isActive = true
    nameTextView.heightAnchor.constraint(equalToConstant: 32).isActive = true
}

func setupSummaryTextView() {
    summaryTextView.topAnchor.constraint(equalTo: nameTextView.bottomAnchor).isActive = true
    summaryTextView.leftAnchor.constraint(equalTo: nameTextView.leftAnchor).isActive = true
    summaryTextView.widthAnchor.constraint(equalTo: nameTextView.widthAnchor).isActive = true
    summaryTextView.heightAnchor.constraint(equalToConstant: 24).isActive = true
}

func setupSegmentedController() {
    segmentedController.topAnchor.constraint(equalTo: summaryTextView.bottomAnchor, constant:10).isActive = true
    segmentedController.leftAnchor.constraint(equalTo: view.leftAnchor, constant:15).isActive = true
    segmentedController.widthAnchor.constraint(equalTo: view.widthAnchor, constant: -30).isActive = true
    segmentedController.heightAnchor.constraint(equalToConstant: 60).isActive = true

}

Finally we need to call those functions in viewDidLoad, and we’re done.

override func viewDidLoad() {
    super.viewDidLoad()
    ...
    ...
    setupCustomView()
    setupProfileImage()
    setupNameTextView()
    setupSummaryTextView()
    setupSegmentedController()
}
